Distribution Frame 108A (Single) 64201050-00 / 6420 1 050-00

(Code: 501-1001-028)
 Add to Enquiry List

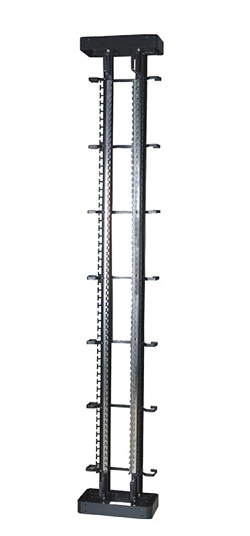

Distribution Frame 108A (Single) 64201050-00 / 6420 1 050-00
LSA-PLUS® Distribution Rack, for holding standard and PROFIL modules series 2, black

Compact modular frame for 690 pairs using LSA-PLUS® modules. May be mounted back to back, side by side, wall mounted or free standing. Complete with detachable legs and compatible with distribution frame 108A.
 Production Classification
 Brand  LSA-PLUS®
 Brand Series  LSA-PLUS
 Product Type  Rack
 Dimensions
 Depth  150.00 mm / 5.91 in
 Height  2004.00 mm / 78.90 in
 Width  285.00 mm / 11.20 in
 General Specifications
 Application  For use with LSA-PLUS modules
 Colour  Black
 Orientation  Vertical
 Mechanical Specifications
 Material Type  Steel
 Mount Type  Wall
 Regulatory Compliance / Certifications
 RoHS 2011 / 65 / EU  Compliant
