Distribution Frames 108A & City 80

(Code: 501-XXXX-027)
Add to Enquiry List
Distribution Frames 108A & City 80


Frame Distribution 108A series are modular distribution frames available in two widths (single and double) and two heights (690 pair and 800 pair) offering a maximum of up to 1600 pairs capacity using Austin Taylor 10 pair Strips Connection 237A.

Modular construction means that the units may be assembled side-by-side for wall mounting, or back-to-back for free-standing applications, using the fixings provided.

Cable management is provided using by large jumper rings fitted top, bottom and between terminal banks, whilst individual terminal blocks are provided with fixed fanning strips.

Earthing is provided via a heavy copper earth commoning bar fitted to the bottom of the frame and running the full width of the frame. Adjustable legs allow for uneven flooring, or may be removed where height is a limitation.







Stock Code  Description
501-1000-027 Frame Distribution 108A Double
501-1001-027
Frame Distribution 108A Single
501-1002-027

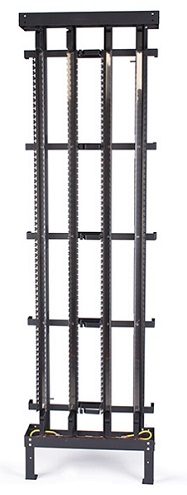

City 80 Frame Double
501-1004-027
City 80 Frame Single

 Details  Frame 108a  Frame 108a (Single)  City 80 (Double)  City 80 (Single)
 Materials Chassis  Mild Steel
 Mountings  Chrome Steel
 Finish  Low gloss black polyester
 Jumper Rings  Black fire retardant ABS
 Height With legs  2006  2006  2248  2248
 Without legs
 1850  1850  2092  2092
 Width  170  285  570  285
 Depth  150  150  150  150
 Weight  25Kg  13Kg  27Kg  15Kg
 Capacity
2 banks 690 pair =1380
 1 banks 690 pair 2 banks 800 pair=1600 banks 800 pair
