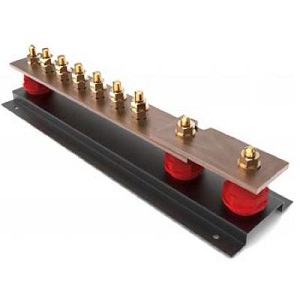

Earth Bar c/w Single Disconnecting Link

(Code: 420-EBAR-1)
 Add to Enquiry List
Earth Bar c/w Single Disconnecting LinkThe single disconnecting link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning and earth system.

Earth bars are supplied with a powder coated base as standard.

The standard connections are M10. Other sizes are available upon request.

 Stock Code  Size
 420-EBAR6-1  6 Way (475 x 100 x 90mm)
 420-EBAR8-1  8 Way (575 x 100 x 90mm)
 420-EBAR10-1  10 Way (725 x 100 x 90mm)
 420-EBAR12-1  12 Way (825 x 100 x 90mm)
 420-EBAR14-1  14 Way (925 x 100 x 90mm)
 420-EBAR16-1  16 Way (1025 x 100 x 90mm)
 420-EBAR18-1  18 Way (1125 x 100 x 90mm)
 420-EBAR20-1  20 Way (1275 x 100 x 90mm)
 420-EBAR22-1  22 Way (1375 x 100 x 90mm)
 420-EBAR24-1  24 Way (1475 x 100 x 90mm)
 420-EBAR26-1  26 Way (1575 x 100 x 90mm)
 420-EBAR28-1  28 Way (1725 x 100 x 90mm)
 420-EBAR30-1  30 Way (1825 x 100 x 90mm)
