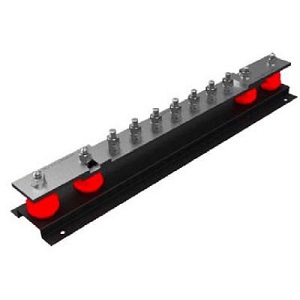

Earth Bar Tinned c/w Twin Disconnecting Link

(Code: 420-EBARS-2T)
 Add to Enquiry List
Earth Bar Tinned c/w Twin Disconnecting LinkThe twin disconnecting link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing
of multiple earth rods / systems while disconnected from the lightning and earth system.

Earth bars are supplied with a powder coated base as standard.

The standard connections are M10. Other sizes are available upon request.

 Stock Code  Size
 420-EBAR6-2T  6 Way (550 x 100 x 90mm)
 420-EBAR8-2T  8 Way (650 x 100 x 90mm)
 420-EBAR10-2T  10 Way (800 x 100 x 90mm)
 420-EBAR12-2T  12 Way (900 x 100 x 90mm)
 420-EBAR14-2T  14 Way (1000 x 100 x 90mm)
 420-EBAR16-2T  16 Way (1100 x 100 x 90mm)
 420-EBAR18-2T  18 Way (1200 x 100 x 90mm)
 420-EBAR20-2T  20 Way (1350 x 100 x 90mm)
 420-EBAR22-2T  22 Way (1450 x 100 x 90mm)
 420-EBAR24-2T  24 Way (1550 x 100 x 90mm)
 420-EBAR26-2T  26 Way (1650 x 100 x 90mm)
 420-EBAR28-2T  28 Way (1800 x 100 x 90mm)
 420-EBAR30-2T  30 Way (1900 x 100 x 90mm)
