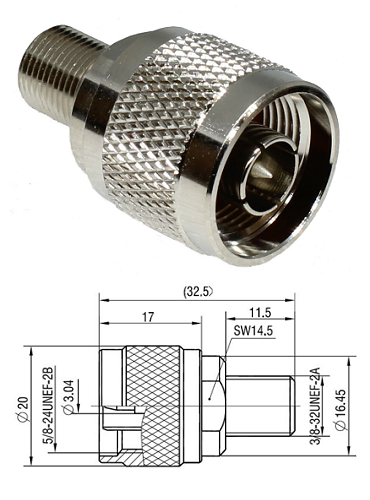

F Type Jack to N Plug Adaptor (N Type 50 ohm Interface)

Materials & Plating

Body - Brass, Nickel Plated

Conductor - Brass, Silver Plated

Insulator - PTFE/ABS

Electrical Characteristics

Impedance - N:50Ω F:75Ω

Frequency range max - DC-1 GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Center conductor ≤10mΩ, Outer conductor ≤ 5mΩ

Insulation Resistance - ≥ 1000MΩ

Mechanical Characteristics

Mating - F:3/8-32UNEF-2A N:5/8-24UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range - 40°C to +85°C
