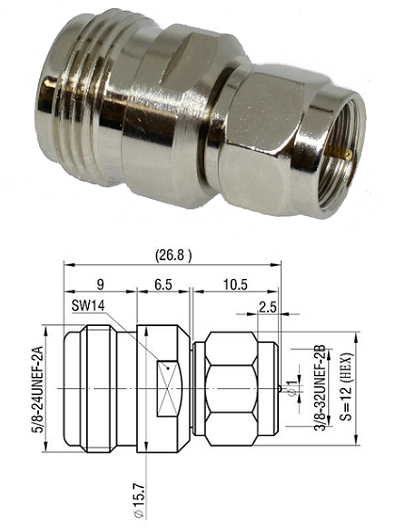

F Type Plug to N Jack Adaptor (N Type 75 ohm Interface)

(Code: 290-5092-070)
Add to Enquiry List
F Type Plug to N Jack Adaptor (N Type 75 ohm Interface)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE/ABS

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - N: 5/8-24UNEF-2A,  F:3/8-32UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
