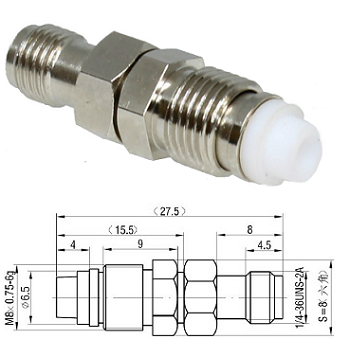

FME Female to SMA Female Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact - Beryllium copper, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - SMA:1/4-36UNS-2A FME:M8x0.75-6g

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
