Frame Distribution 6000

(Code: Frame 6000)
 Add to Enquiry List

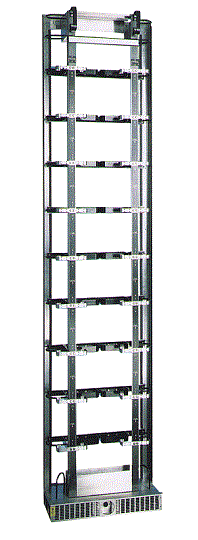

Frame Distribution 6000Description

A versatile Digital Distribution Frame designed to accommodate standard Type 43 connectors and provide for rear jumpering using ‘U’ Links.

The connectors are vertical plastic blocks fitted to the frame front vertical.

Through-frame jumpering is carried in rings and troughs at the base and top of the frame. The base also incorporates ring to facilitate front to rear jumpering.

The frame footprint is 600mm x 260mm and is available in 2.2m and 2.6 heights.

 Stock Code  Description
 801-6002-047  6000 B 2.2m Frame  (holds 24 blocks)
 801-6001-047  6000 A 2.6m Frame  (holds 32 blocks)

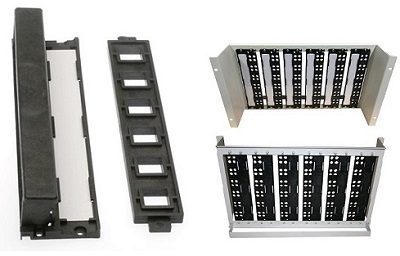

 801-6005-047  600 DDF Mounting Blocks D81860
 801-6014-074  600 19" DDF Panel (c/w 6 Blocks)
