FTTH Optical Fiber Cleaver

(Code: 902-FC-6S)
 Add to Enquiry List

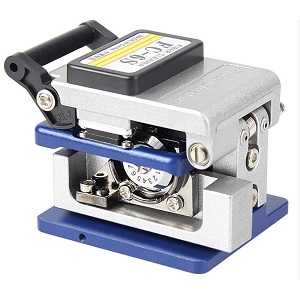

FTTH Optical Fiber Cleaver
Features:

♦ Stable operation withMulti-Action process
♦ Typical cleave angle: 90°± 0.5°
♦ Compact & handy outfit design
♦ High precision cleaving blade with 16 cleave spots
♦ Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦ Built-in maintenance tool attached: on the bottom


Application:

♦ Applicable fiber: SM, MM, DS,NZ-DS, EDF, 125um OD of Nude Fiber Cable
♦Fiber Diameter: Core of Fiber Cable single(0.25 & 0.9mm)~12 multicore
♦Coating Diameter: 100~1000um
♦ Cleave Angle: 90°± 0.5°
♦ Cut Length of Fiber Cable 9~16mm(0.25mm) 10~16mm (0.9mm)
♦ Blade Lifetime: 40000 cleaves

♦ Weight: 0.23kg.
