Description
Power Distribution Units (PDUs) are units which are mounted into a data/server cabinet, to provide power for the housed equipment.
Our horizontal PDUs are 1.5U in height, and are built using a tough aluminium extrusion. All PDUs have a 3m power lead with 13A UK plug as standard, with other options available. A switch cover and shrouded switch prevent the PDU from being accidentally turned on/off.

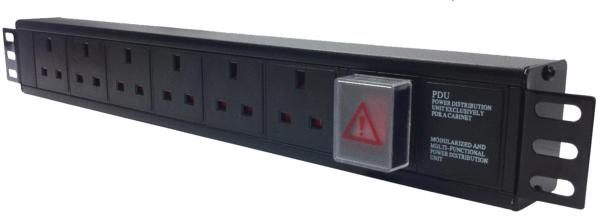

Main image shows 6 way horizontal UK PDU
• 3-metre 1.5mm lead
• Tough 1.5U aluminium extrusion
• Shrouded switch with switch cover
• C14, C20, or 16A commando options
• Horizontal UK 13A BS1363 ‘type G’ outlets
Horizontal UK PDUs are preferred by many due to the fact that it is commonplace for equipment to be fi tted with a UK plug. Horizontal UK PDUs allow users to power essential equipment from one easy location in the rack.
The cable exits the unit at the rear, making mounting of the PDU easier, whilst taking up only 1.5U of vital rack space.
 |
 |
 |
The cable on the horizontal PDUs
exits from the rear of the unit, allowing
easier mounting of the PDU. |
The shrouded switch of the PDU is
protected by a switch cover,
preventing accidental switching
off of the PDU. |
Various plug options are available,
including C14, C20, 16A commando,
and 32A commando plugs. |
PDU Options
|
|
|
IEC C14 plug
IEC 60320(320) |
IEC C20 plug
IEC 60320(320) |
16A commando plug
IEC 60309(309) |
Specifications
| Weight of PDU |
1.1kg – 1.15kg |
| Net length of PDU |
490mm |
| Net width of PDU |
60mm |
| Net depth of PDU |
45mm |
| Shipping length of PDU |
520mm |
| Shipping Width of PDU |
132mm |
| Shipping Depth of PDU |
75mm |
| Shipping Weight of PDU |
1.3kg – 1.35kg |
| PDU max power |
3250W |
| Output rating |
13A |
Overall rating
|
6A
|
Input Frequency
|
50/60Hz
|
Acceptable Input Voltage
|
250VAC
|
|
