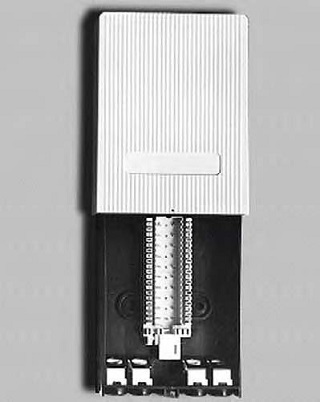

 KRONECTION®-Box A2 and A10
The KRONECTION Box is a weather-proof protective enclosure for connecting a 2-pair (A-2) telecommunication cable or for branching a 10-pair (A-10) telecommunication cable to installation cables with fewer pairs. Apart from standard mounting on walls (no mounting material is included in the delivery), mounting on poles is also possible (the pole mounting kitto be ordered separately). The integrated LSA-PLUS connection system permits quick and easy earthing, shielding and contacting of cable wires without using screws,soldering or stripping wires.
• An overvoltage magazine,Series 8, for 2 or 10 pairs can be installed
• The box A10 can be locked by means of a slotted grooved screw
• The box is completely maintenance-free
• The box A10 can be fitted with a cylinder lock (with KRONE locking mechanism; installation from the side)
Technical Data
Protection class: IP 54 acc. to DIN 40 050
Material: duroplast (GFK)
Colour grey-white (RAL 9002)
Flammability class: UL 94V-0
Temperature: -30°C up to +80°C
| Order No. |
Description |
|
| 6430 1 002-00 |
KRONECTION Box A-2 |
(Box 83) H x W x D in mm: 109 x 79 x 48 |
| 6432 1 002-00 |
KRONECTION Box A-10 |
(Box 85) H x W x D in mm: 181 x 141 x 56 |
| |
|
|
| 6417 2 010-00 |
Fail-safe contact |
|
| 6430 2 003-00 |
Test adapter 8/1 |
|
| 6430 2 001-05 |
Magazine 8/2 |
|
| 6432 2 001-04 |
Magazine 8/10 |
|
| 6432 3 018-00 |
Cylinder lock |
|
| 6432 3 019-00 |
Key |
|
| 6432 5 006-00 |
Pole fixing kit |
|
|
