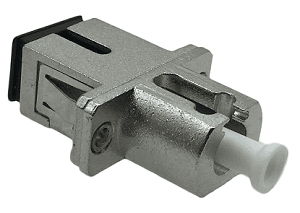

LC Female to SC Female Hybrid Fibre Adaptor

(Code: NS-SCLC-FF-M)
 Add to Enquiry List
LC Female to SC Female Hybrid Fibre Adaptor



Description

Female to Female Hybrid Adapters are developed to couple and mate two different (hybrid) connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

This LC (Female) to SC (Female) fiber optic hybrid adapter,Converting LC connector to SC Connector. Variable LC interface conversion SC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.



Part Name Materials Colour
Housing Body Zinc Alloy Metal
Sleeve High Precision Ceramic Sleeve White
Dust Cover ABS/Rubber White/Red/Green/Black

Test Item (SM-9/125)UPS (SM-9/125)APC NM PC
Insertion Loss   ≤0.2dB  ≤0.2dB  ≤0.2dB
Return Loss  ≥50 dB  ≥60 dB  ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal Force (g/f) 200-600
Storage Temp -40 - +85

Drawing
