LSA-PLUS® Disconnection Module 2/10 to Screw Terminal

(Code: 7004-2-001-01)
Option :

Datasheet		 Add to Enquiry List

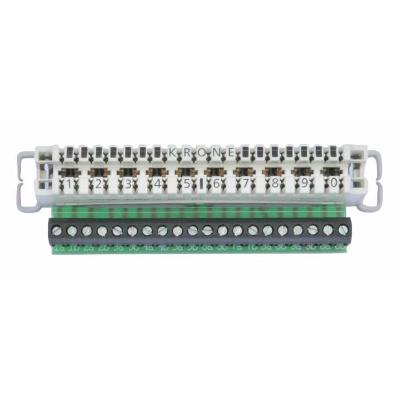

LSA-PLUS® Disconnection Module 2/10 to Screw Terminal
Description

KRONE LSA-PLUS® Disconnection Module 2/10 to Screw terminal has 20 position screw terminals soldered to a PCB. Each IDC contact of the module is connected to the relevant contact of 20 position screw terminal through PCB, thus permitting wires upto 2.5 Sq. mm to be connected to the module.

The assemblies can be supplied as single unit with 20 position terminals on one side or as double units with 20 position terminals connected to both row of IDC contacts

Features
  • Can be used as drop wire module in military field installations/rural telecom network
  • Occupies 2 or 3 ways of BMF
  • Supports all LSA-PLUS® S2 accessories
  • Flexible indoor and outdoor use
  • Robust long term environmental stability
  • Overvoltage/Overcurrent protection
