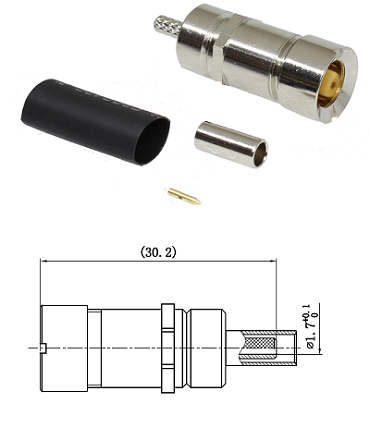

M4 Female RA8000 (solder pin)

(Code: 225-2008-088)
 Add to Enquiry List
M4 Female RA8000 (solder pin)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Resistance -Phosphor Bronze, Copper Plated

Insulator - PTFE

Gasket - Silicon Rubber



Electrical Characteristics

Impedance - 75 ohm

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly

Pin: Solder

Outer: 4.52 mm hex
