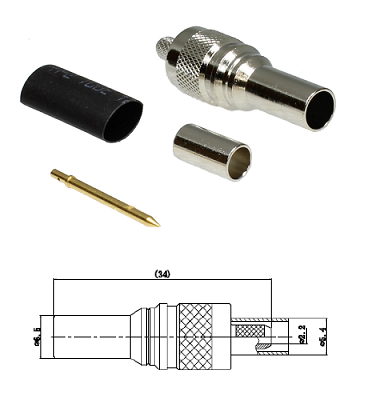

M4 Male BT3002, TZC

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Resistance - Beryllium Bronze, Copper Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage -500V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C

Assembly

Pin: 1.09 mm hex

Outer: 3.5 mm hex
