Modular Panel for Keystone Jacks
High Density
Compatible with Cat 6A, Cat 6 and Cat 5e
Integral Cable Management
Features
Unloaded Panel Chassis
High density – 48 ports in 1U
Compatible with all Maxxam Keystone Jacks
Earth bonding point and 400mm earth wire provided
Protected port labelling facility
Integral, removable cable management
Product Overview

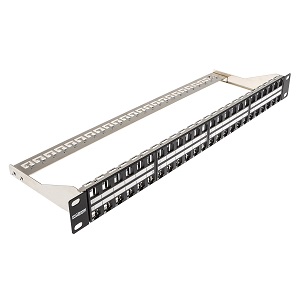

The Maxxam Keystone Patch Panel provides the facility to mount up to 48 Maxxam Keystone Jacks in a 1U chassis, making it ideal for high density applications in data centres and large Comms rooms. The panel can be used with Cat 6A STP, Cat 6 UTP and Cat 5e UTP Keystone Jacks which must be ordered separately. Maxxam Keystone Jacks can be easily installed and removed from the rear of the panel, facilitating quick Moves, Adds & Changes. The rear cable management bar can be easily detached without the requirement for any tools, thus providing improved access for installing or removing jacks. It can then be quickly replaced to provide support and management of incoming cables. The panel is supplied complete with a 400mm earth cable for connection to the cabinet or rack earth bonding system.
Technical Data
