MCX Jack/Jack Adaptor

(Code: 233-8000-070)
Add to Enquiry List

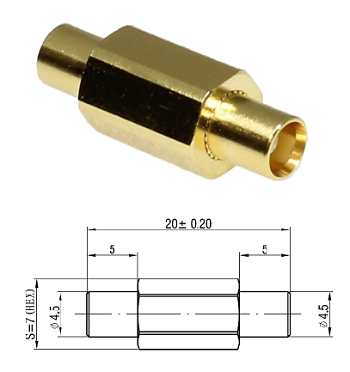

MCX Jack/Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Beryllium Copper, Gold Plated

Insulator - PTFE


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC -3GHz

Dielectric Withstanding Voltage - 750V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 1000mΩ


Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥500 cycle


Environmental Characteristics

Temperature Range: -  55°C to +155°C
