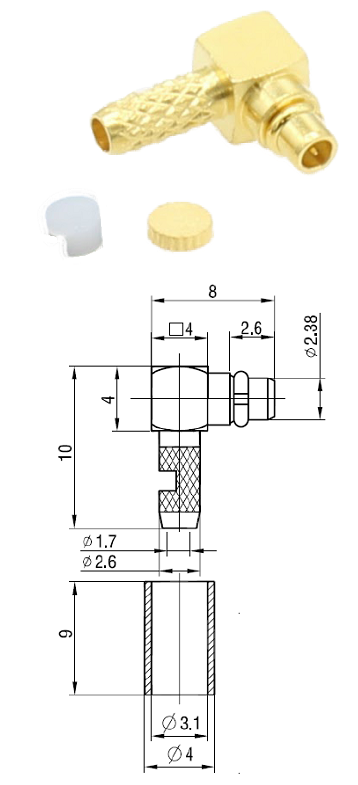

MMCX Right Angled Plug RG174, RG316

(Code: 232-650-128-2)
Add to Enquiry List
MMCX Right Angled Plug RG174, RG316

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE/POM

Crimp Ferrule - Brass, Gold Plated


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 500V(RMS)

Contact Resistance - Centrace ≤ 5mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 1000mΩ


Mechanical Characteristics

Mating - snap-on coupling

Durability - ≥ 500 cycles


Environmental Characteristics

Temperature Range: - 55°C to +155°C


Assembly

Pin: Solder

Outer: 3.25 mm hex
