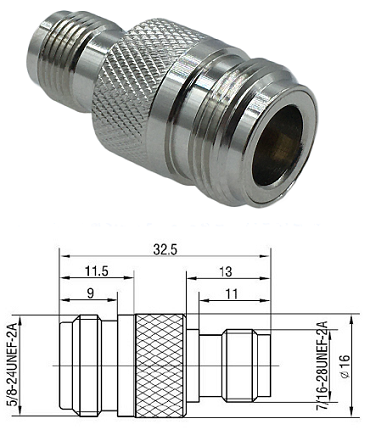

N Female to TNC-RP Female

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance -50 ohm

Frequency Range Max. - DC - 5.85GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR - ≤1.4​​​​​​​

IL​​​​​​​ - ≤0.3dB​​​​​​​

Mechanical Characteristics

Mating - N:5/8-24UNEF-2A TNC:7/16-28UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

TemperatureRange: - 55°C to +155°C
