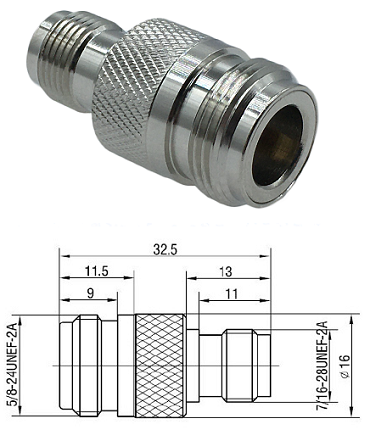

N Female to TNC-RP Female

(Code: 290-5233-070)
 Add to Enquiry List
N Female to TNC-RP Female

Materials& Plating

Shell/Body -Brass, Nickel Plated

Conductor -Bronze, Gold Plated

Insulator -PTFE

ElectricalCharacteristics

Impedance -50 ohm

FrequencyRange Max. - DC - 5.85GHz

DielectricWithstanding Voltage - 1500V (RMS)

ContactResistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

InsulationResistance - ≥ 5000mΩ

VSWR -≤1.4​​​​​​​

IL​​​​​​​ -≤0.3dB​​​​​​​

MechanicalCharacteristics

Mating -N:5/8-24UNEF-2A TNC:7/16-28UNEF-2A

Durability -≥ 500 cycles

EnvironmentalCharacteristics

TemperatureRange: - 55°C to +155°C
