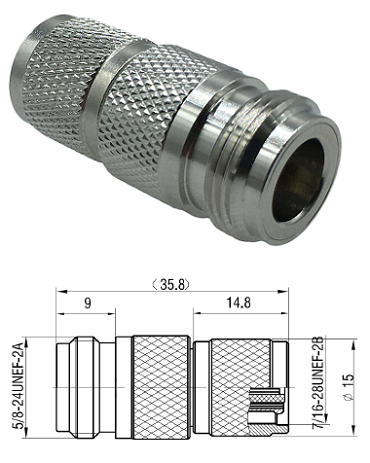

N Female to TNC-RP Male

Materials & Plating

Body - Brass, Nickel Plated

Contact - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance -50 ohm

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - N:5/8-24UNEF-2B,SMA:1/4-36UNS-2A

Durability -≥ 500 cycles

Environmental Characteristics

Temperature range - - 55°C to +155 °C
