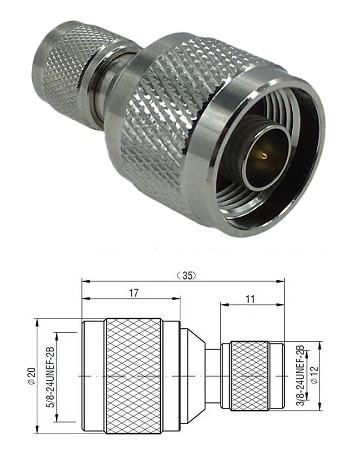

N Male to Mini UHF Male

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50Ω

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - N: 5/8-24UNEF-2B, MINIUHF:3/8-24UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -55°C to +155°C
