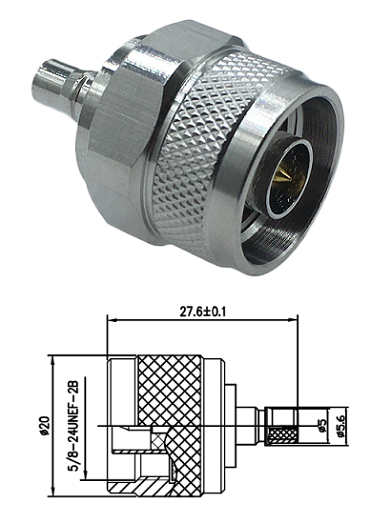

N Male to QMA Female Adapter

Electrical Data

Impedance - 50Ω

Frequency Range - 0～3GHz

Working Voltage - 335V max

Withstand Voltage - 1000V rms

VSWR

-Straight - ≤ 1.1

-Right Angle - ≤ 1.2

Contact Resistance

-center contact ≤3mΩ

-outer contact ≤2mΩ

Insulation Resistance ≥5000MΩ

Mechanical Data

Temperature Range - -55°C～+155°

Durability (matings) - ＞500

Material Data

Body - Brass, Tri-Metal (3～5µ)

Centre Conductor - Phosphor Bronze, Gold Plated (0.1～0.2µ)

O-ring Sealing - 6146 Silastic

Insulator - PTFE

Interface Standard

MIL-C-39012/CECC 22110/IEC 60169-15
