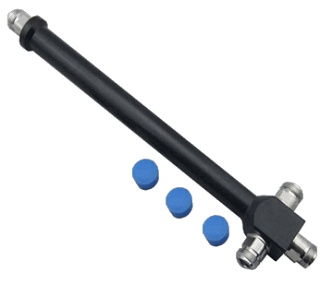

N Type 3 Way Splitter (698-2700 MHz)

(Code: 220-APD6827-03N)
 Add to Enquiry List
N Type 3 Way Splitter (698-2700 MHz)

 Electrical Specifications
 Frequency range(MHz)  698-2700
 VSWR  ≤1.3
 Split loss  4.77dB
 Insertion Loss(dB)  ≤5.3
 Average Power(W)  300
 Impedance(Ω)  50
 In-band Ripple(dB)  ≤±0.2
 In-band Ripple(dB)  ≤-150@+43dBm×2
 Mechanical Specifications
 Connectors  N-K(female)

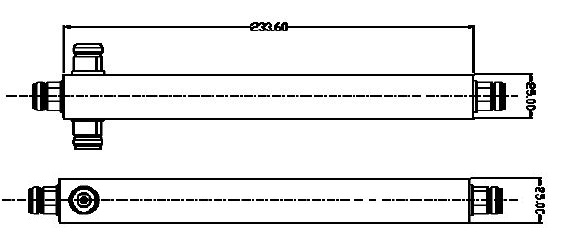

 Length*Width*Height(mm)  233.60*25.00*25.00
 Operating Temperature range(℃)  -30 --- +70
 Degree of protection  IP65
 Relative Humidity  (0-95)%
 Packing  1pc in box
