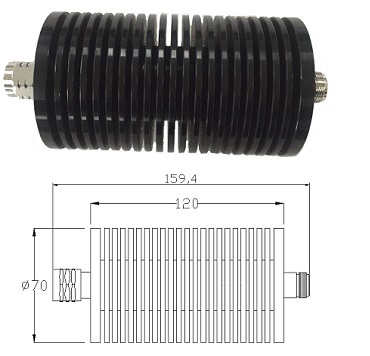

N Type Attenuator 100W, DC-3GHz N-Male to N-Female

(Code: MA-100-3G-XX-NM/F)
 Add to Enquiry List
N Type Attenuator 100W, DC-3GHz N-Male to N-Female
Product Features
Wide Frequency Band DC-3GHz
Low VSWR
Low Attenuation Accuracy
Widely used for In-building Solutions

Technical & Mechanical Specifications
Power 100W
Frequency (GHz) DC- 3GHz
VSWR ≤1.20
Impedance (ohm) 50
RF Connector N(M)-N(F)
Colour Black
Temp (deg) -45 to +125
Weight (kg) 0.80

Product Code Attenuation Accuracy
MA-100-3G-01 NM/F 1 ±0.5
MA-100-3G-03 NM/F 3 ±0.5
MA-100-3G-06 NM/F 6 ±0.5
MA-100-3G-10 NM/F 10 ±0.8
MA-100-3G-15 NM/F 15 ±1.0
MA-100-3G-20 NM/F 20 ±1.0
MA-100-3G-30 NM/F 30 ±1.0
MA-100-3G-40 NM/F 40 ±2.0
MA-100-3G-50 NM/F 50 ±2.5
MA-100-3G-60 NM/F 60 ±3.0
