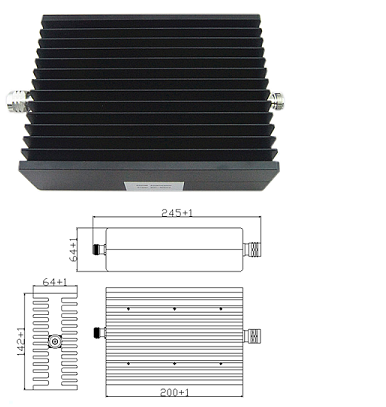

N Type Attenuator 200W, DC-3GHz N-Male to N-Female

(Code: MA-200-3G-XX-NM/F)
 Add to Enquiry List
N Type Attenuator 200W, DC-3GHz N-Male to N-Female
Product Features
Wide Frequency Band DC-3GHz
Low Attenuation Accuracy
Low VSWR
Widely used for In-building Solution

Technical & Mechanical Specifications
Frequency (GHz) DC- 3GHz
VSWR ≤1.20
Power (W) 200 (average)
Attenuation (dB) 3/6/10/15/20/30/40
Impedance (ohm) 50
Connector N(M)-N(F)
Working Temp (deg) -30~+65
Colour Black
Weight (kg) 2.65

Product Code Attenuation Accuracy
MA-200-3G-03 NM/F 3 ±0.8
MA-200-3G-06 NM/F 6 ±0.8
MA-200-3G-10 NM/F 10 ±1.0
MA-200-3G-15 NM/F 15 ±1.2
MA-200-3G-20 NM/F 20 ±1.5
MA-200-3G-30 NM/F 30 ±2.0
MA-200-3G-40 NM/F 40 ±2.5
