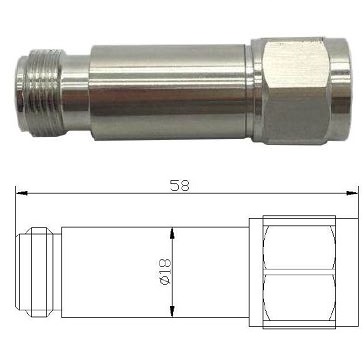

N Type Attenuator 5W, DC-3GHz N-Male to N-Female

(Code: MA-05-3G-XX-NM/F)
 Add to Enquiry List
N Type Attenuator 5W, DC-3GHz N-Male to N-Female
Product Features
Wide Frequency Band DC-3GHz
Low Attenuation Accuracy
Low VSWR
Widely used in IBS &DAS
Indoor Application
Widely used for In-building Solutions

Technical & Mechanical Specifications
Freq (MHz) DC- 3GHz
VSWR ≤1.25
Power (W) 5 (average)
Attenuator (dB) 3, 6, 10, 20, 30
Accuracy (dB) ±0.8, ±1.0, ±1.5
Impedance 50 ohm
Connector N-male to N-female
Colour Silver
Temp (deg) -30~+65
Weight (kg) 0.06

Product Code Attenuation Accuracy
MA-05-3G-03-NM/F      3 ±0.8
MA-05-3G-06-NM/F
 6 ±0.8
MA-05-3G-10-NM/F
 10 ±1.0
MA-05-3G-20-NM/F
 20 ±1.0
MA-05-3G-30-NM/F
 30 ±1.5
