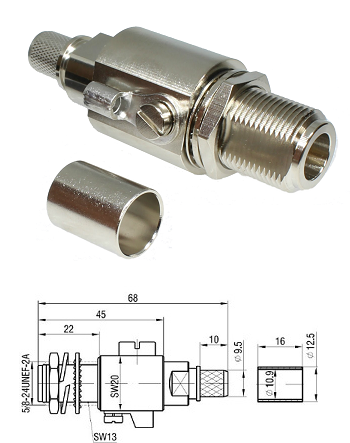

N Type Bulkhead Jack LMR400 GDT Lighting Arrester (5.8GHz)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze/Beryllium, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max - 0.1MHz-5800MHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ

Voltage Standing Wave Ratio - <1.4

Insertion Loss - <1dB

Mechanical Characteristics

Mating - 5/8-24UNEF-2A

Durability - 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C

Assembly

Cable: LMR400

Crimp hex: 0.429in(10.9mm)

Gas Tuber: 90V/230V DC
