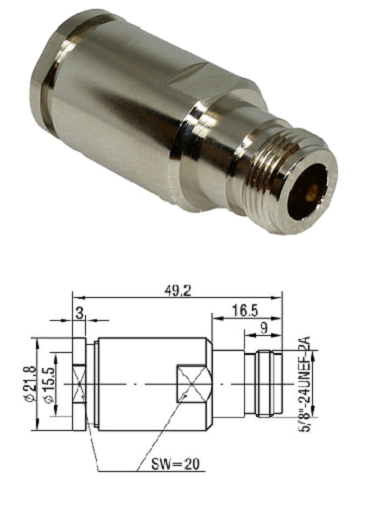

N Type Clamp Jack LMR600 (Easy-Fit)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 5.85GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR - ≤1.55

IL - ≤0.35dB​​​​​​​

Mechanical Characteristics

Mating - 7/16-28UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
