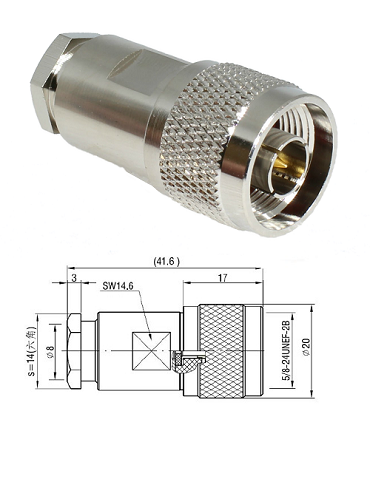

N Type Clamp Plug LMR300 (Easy-Fit)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50Ω

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ

Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
