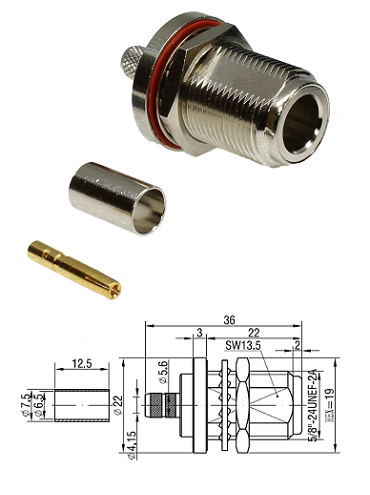

N Type Crimp Bulkhead Jack LMR240

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR - ≤1.3

IL - ≤0.5dB



Mechanical Characteristics

Mating - 5/8"-24UNEF-2A

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly

Pin: Solder

Outer: 6.48 mm hex
