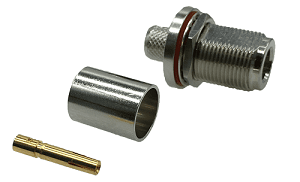

N Type Crimp Bulkhead Jack LMR400 (2.54/10.9)

(Code: 220-2580-107)
Add to Enquiry List
N Type Crimp Bulkhead Jack LMR400 (2.54/10.9)


Materials &Plating

Body - Brass,Nickel Plated

Pin - Brass,Gold Plated

Dielectric -Teflon

Sleeve - Brass,Nickel Plated

Gasket - SI-Rubber, Red

Ferrule -Brass, nickel Plated

Washer - Brass,Nickel Plated

Gap - Brass,Nickel Plated

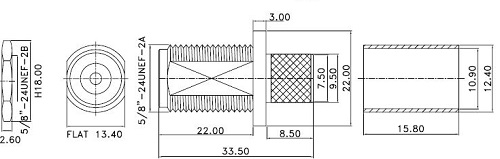

Drawing




Assembly
Pin: 2.54 mm hex
Outer: 10.9 mm hex
