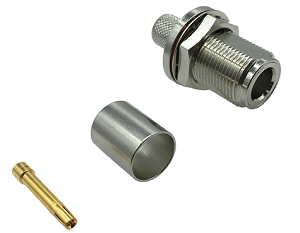

N Type Crimp Bulkhead Jack LMR400

(Code: 220-2580-061)
 Add to Enquiry List
N Type Crimp Bulkhead Jack LMR400


Materials & Plating

Body - Brass, Nickel Plated

Insulator - Teflon, White

Contact Pin - Brass, Gold Plated

Ferrule - Brass, Nickel Plated

Gasket - Rubber, Red

Washer - Brass, Nickel Plated

Nut - Brass, Nickel Plated

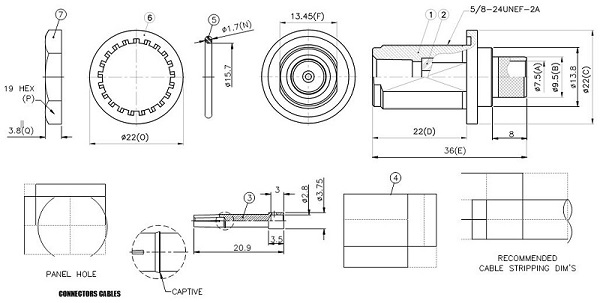

Drawing



Assembly

Crimp Ferrule Hex Crimp Size: 10.9 mm hex

Crimp Contact Pin Hex Crimp Size: 3.25 mm hex
