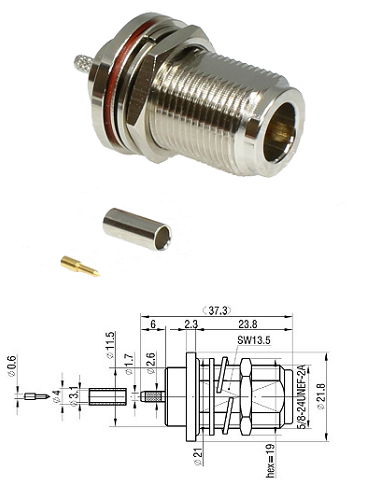

N Type Crimp Bulkhead Jack RG174, RG316

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Nut - Brass, Nickel Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50Ω

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ

Mechanical Characteristics

Mating - 5/8"-24UNEF-2B

Durability - 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly

Pin: Solder

Outer: 3.25 mm hex
