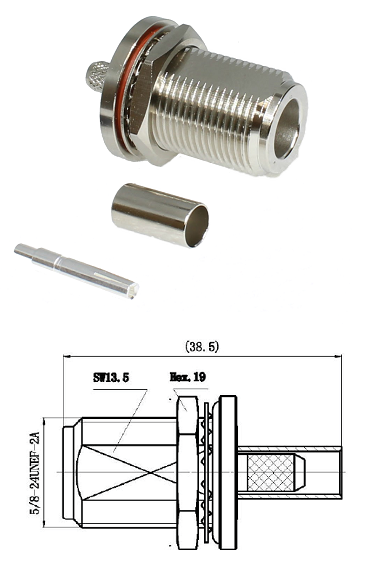

N Type Crimp Bulkhead Jack RG58

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE

Others - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2.5GHz

VSWR - ≤ 1.2

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: -  40°C to +85°C



Assembly

Pin: 1.72 mm hex

Outer: 5.41 mm hex
