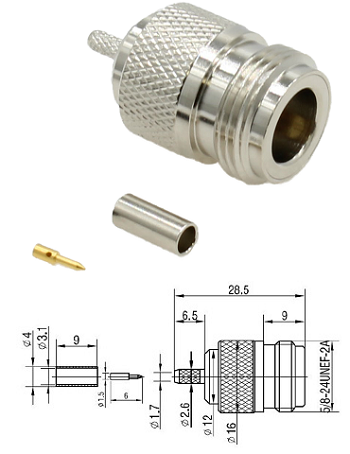

N Type Crimp Jack RG174, RG188, RG316, LMR100 (solder pin)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V(RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly

Pin: Solder

Outer: 3.25 mm hex
