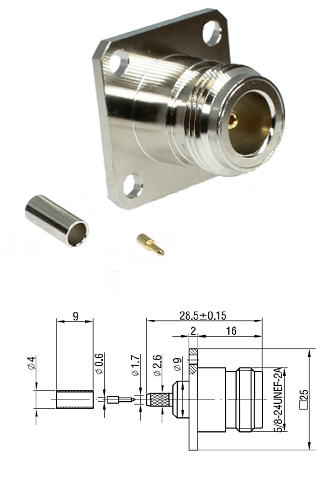

N Type Crimp Panel Jack RG174, RG316

(Code: 220-660-082)
Add to Enquiry List
N Type Crimp Panel Jack RG174, RG316

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ


Mechanical Characteristics

Mating - ≥ 5/8-24UNEF-2A

Durability - ≥500 cycle


Environmental Characteristics

Temperature Range: -  55°C to +155°C


Assembly

Pin: 1.06 mm hex

Outer: 3.25 mm hex
