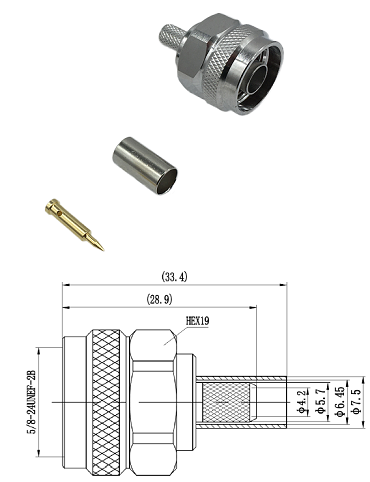

N Type Crimp Plug LMR240 Hex Nut

(Code: 220-1044HS-088)
 Add to Enquiry List
N Type Crimp Plug LMR240 Hex Nut

Materials & Plating

Body - Brass, Nickel Plated

Insulator - PTFE

Centre conductor - Brass, Gold Plated



Electrical Characteristics

Characteristic Impedance- 50 ohm

Frequency Range - DC-3GHz

VSWR - ≤1.15

Dielectric Withstanding Voltage- ≥2500 RMS, 50Hz at sealevel

Dielectric Resistance - ≥5000M Ω

Contact Resistance - Outer contact≤1.0mΩ; CenterContact≤1.0mΩ



Mechanical Characteristics

Durability - ≥ 500 Mating cycles



Environmental Characteristics

Temperature Range: -40℃～+85℃

Assembly

Pin: Solder

Outer: 6.48mm
