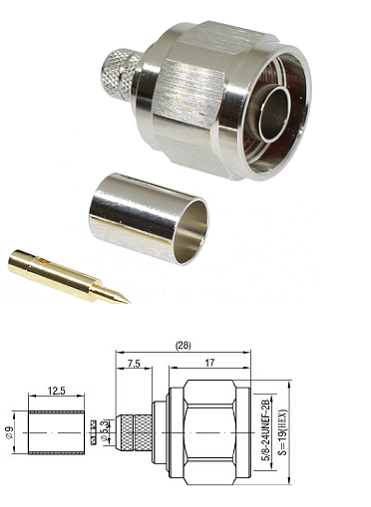

N Type Crimp Plug LMR300 (Hex Coupling)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Pin - Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8-24UNF--2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°



Assembly

Pin: 2.54 mm hex

Outer: 7.90 mm hex
