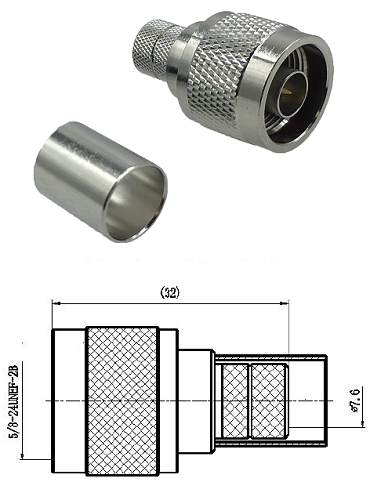

N Type Crimp Plug LMR400 (Easy-Fit)

Materials & Plating

Body - Brass, Nickel Plated

Insulator - PTFE

Centre Conductor - Phosphor Bronze, Gold Plated

Other - Brass, Nickel Plated

Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - ≤1.20

Insertion Loss - ≤0.1dB

Dielectric Resistance - 5000M Ω

Contact Resistance - Centre ≤ 1.mΩ, Outer ≤ 0.25mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C

Assembly

Pin: Easy-Fit

Outer: 10.9 mm hex
