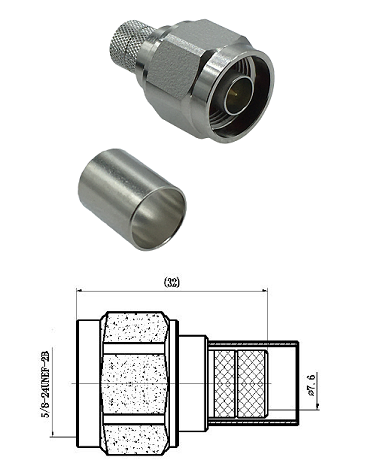

N Type Crimp Plug LMR400 (Eazy-Fit Hex Coupling)

Materials & Plating

Body - Brass, Nickel Plated

Insulator - PTFE

Centre Conductor - Brass, Silver Plated

Other - Brass, Nickel Plated

Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range - DC - 3GHz

VSWR - ≤1.15

Insertion Loss - ≤ 0.01dB

Dielectric Resistance - 5000mΩ

Contact Resistance - Centre ≤ 1.mΩ, Outer ≤ 0.25mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C

Rosh-compliance - Full ROHS compliance

Assembly

Pin: Easy-Fit
Outer: 10.9 mm hex
