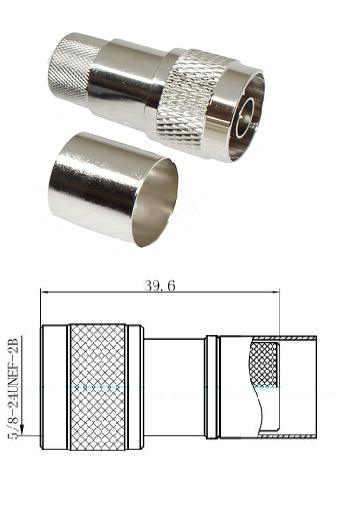

N Type Crimp Plug LMR600 (Easy-Fit)

Materials & Plating

Body - Brass, Nickel Plated

Center Conductor - Brass, Gold Plated

Insulator - PTFE

Other - Brass, Nickel Plated

Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range - DC - 3GHz

VSWR - ≤1.15

Dielectric Resistance - ≥5000MΩ

Dielectric Withstanding Voltage - ≤1500V

Contact Resistance - outer contact ≤1mΩ; center contact ≤1mΩ

Mechanical Requirements

Durability - ≥500Mating cycles

Environmental

Temperature Range - -40℃～+85℃

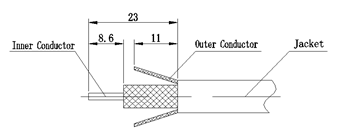

Assembly

Pin: EZ-Fit

Outer: 15.0 mm hex
