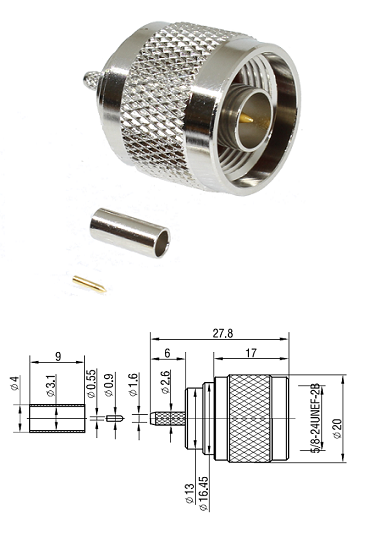

N Type Crimp Plug RG174, 188A, 316, LMR100

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze/Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 5.85GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ

VSWR: 14

IL: 0.3dB



Mechanical Characteristics

Mating - 5/8"-24UNEF-2B

Durability - 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly:

Pin: Solder

Outer: 3.25 mm hex
