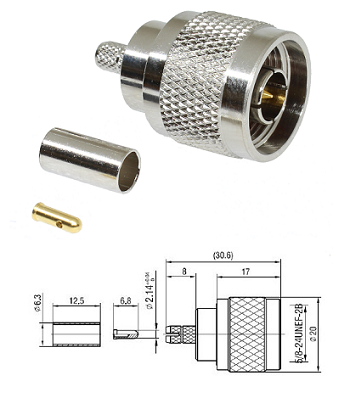

N Type Crimp Plug RG58

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ



Mechanical Characteristics

Mating - 5/8"-24UNEF-2B

Durability - 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly

Pin: 1.72 mm hex

Outer: 5.41mm hex
