N Type Female to SMA-RP Female

Materials & Plating

Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Nut - Brass, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

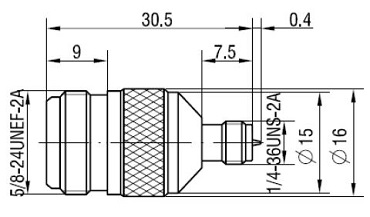

Mating - N: 5/8-24UNEF-2A, SMA: 1/4-36UNS-2A

Durability - ≥ 500 cycles
