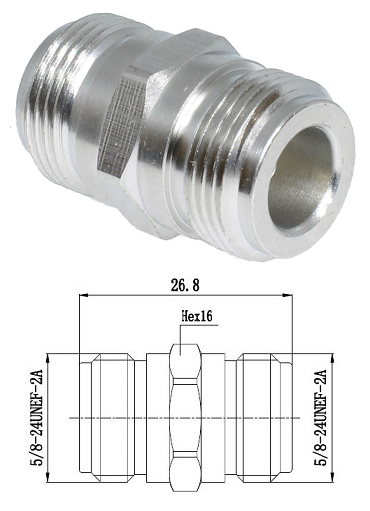

N Type Jack/Jack Straight Adaptor (26.8mm)

Materials & Plating

Shell/Body - Brass, Try-Alloy

Conductor - Tin-Phosphor Bronze, Gold Plated

Insulator - PTFE

Other - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3 GHz

VSWR - VSWR≤1.10

PIM - ≤-160dBc

Insertion loss - ≤0.1dB

Dielectric Withstanding Voltage - ≤2.5kV rms, 50Hz

Dielectric Resistance - ≥5000MΩ

Contact Resistance - outer contact≤0.25mΩ;center contact≤1mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -40°C to +85°C
