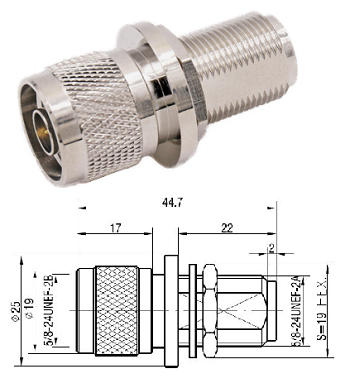

N Type Jack/Plug Bulkhead Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -  N: 5/8-24UNEF-2A（2B）

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
