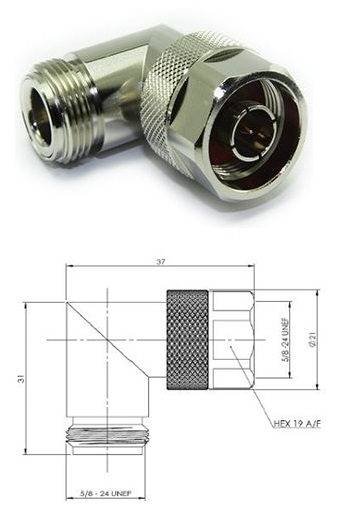

N Type Jack/Plug Right-Angle Adaptor (11GHz)

(Code: 220-8411-002)

Electrical Specification
Impedance:	50 Ohm
Frequency Range:	11GHz
Dielectric Withstand Voltage:	1500 Veff
Insulation Resistance:	5000 M-Ohm
Mechanical Specification
Design Standard:	IEC 61169-8
RoHS Compliant:	Yes
Mating Cycles:	500
Contact Retention:	27N min
Weight:	65.8g
Mating Force:	6.6Ncm max
Un-Coupling Force:	6.6Ncm max
Environmental Specification
Operating Temperature:	-55 to +155 Deg C
IP Rating ( Mated ):	IP67
Materials
Centre Contact:	Phosphor Bronze
Outer Contact:	Brass
Insulator:	PTFE
Centre Contact Plating:	Gold
Outer Contact Plating:	Nickel
Pack Size:	1
