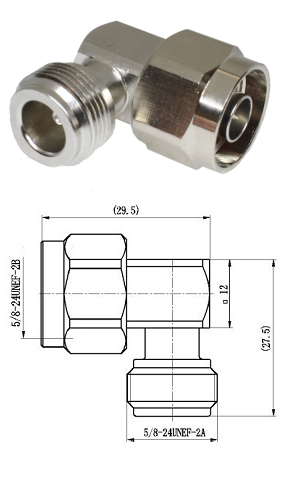

N Type Jack/Plug Right-Angle Adaptor (Hex)

Materials & Plating

Shell/Body - Brass, Nickel Plated/Tri-Alloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Silver Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - ≤1.15

Dielectric Withstanding Voltage - 2500V (RMS) 50Hz at sea level

Insulation Resistance - ≥ 5000mΩ

PIM3 - ≤-150dBc@(2*20W)

Mechanical Characteristics

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  40°C to +85°C
