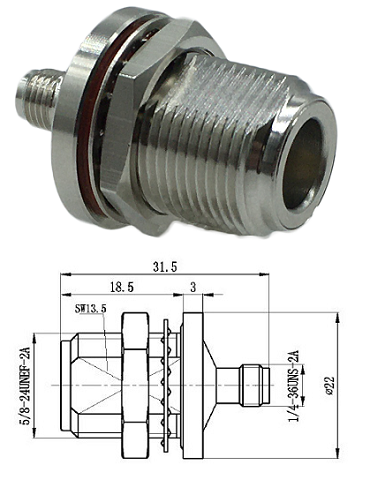

N Type Jack - SMA Jack Bulkhead Adaptor (31.5mm)

Material and Plating

Body - Brass, Nickel Plated

Insulator - PTFE

Centre Conductor - Beryllium Bronze, Gold Plated

Others - Brass, Nickel Plated

Electrical

Characteristics Impedance - 50 ohm

Frequency Range - DC-6GHz

VSWR - ≤1.15

Insertion Loss (3G) - ≤ 0.1dB

Dielectric Resistance - ≥5000MΩ

Mechanical

Durability - Mating cycles ≥500 cycles

Environmental

Temperature Range - -40℃～+85℃

Water Tightness - IP65

Rosh-compliance - Full ROHS compliance
